Panel Saw With Diamond Coating
Product Model:

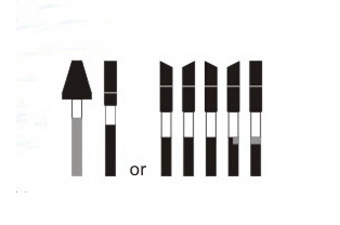

- Teeth Shape: diamond coated.
- Direction: Left → Right → Left → Right → Flat, 5 teeth per set.
- Application: For stack cutting of low, medium, high density board and plywood.
- In Additional Applicable Machine: computerized panel saw.
Panel Saw With Diamond Coating (Standard)
The customization is avaiable
| O.D | Bore | Thickness (m/m) |
Teeth |
| 12"(305) | Ø25.4 | 3 | 100T |
| 14"(355) | Ø25.4 | 3~3.2 | 50T |
| 14"(355) | Ø25.4 | 3~3.2 | 60T |
| 14"(355) | Ø25.4 | 3~3.2 | 60T |
| 14"(355) | Ø25.4 | 3.5 | 60T |
| 14"(355) | Ø25.4 | 3~3.2 | 80T |
| 14"(355) | Ø25.4 | 4.0 | 60T |
| 14"(355) | Ø25.4 | 4.0 | 80T |
